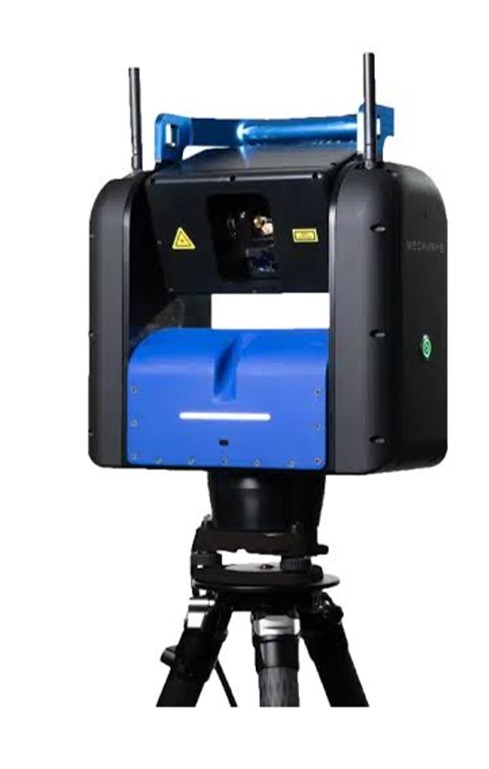

The Mechasys XR Projector is a high-accuracy laser projection system that displays CAD/BIM models directly onto floors, walls, and ceilings at 1:1 scale. With mm accuracy of 3D scanning, it eliminates manual layout errors and accelerates on-site construction workflows. Its compact, standalone design supports 2D/3D projections, roughness surface adaptation, and cloud-based modifications — making digital layout accessible to all trades.

Benefits:

l   Eliminates layout errors – reduces rework and material waste

l   2–20x faster than manual methods (case-study proven)

l   3 mm accuracy even in tough conditions (-15°C to +50°C)

l   Easy to use – 3-hour training, online train-the-trainer program

l   Portable & rugged – 14 kg, IP54, fits in a backpack

Applications:

l   Wall layout (drywall tracks, studs)

l   Ceiling installations (grids, RCP)

l   MEP anchor points (direct installation without marking)

l   Curved designs & complex geometries

Job References:

l   Multi-Residential Project - Canada (30,780 m²)

l   MEP Anchor Installation - Canada (2,283 m²)

l   Hospital Wall Layout – Canada (2,848 m²)

l   Over 150 projects completed worldwide
